From Disconnected Gates to Centralised Control: A Parkomax Success Story from A Large Labour Camp in Saudi Arabia
KSA’s one of the largest labour camps, a multi-zone residential and operational facility, houses thousands of employees, contractors, and visitors across geographically dispersed sites. The client needed to secure three physically separated access points – Gate 1 (entry and exit), Gate 2 (camp gate), and the dining area – while maintaining synchronized, real-time access control and complete visibility from a centralised management system.
Parkomax was selected to design and deploy a unified access management platform integrating Automatic Number Plate Recognition (ANPR), Ultra-high Frequency (UHF) RFID, and QR code-based dining access – all consolidated into a single cloud-hosted dashboard.
The result is a seamless, operator-friendly system that gives the security teams real-time visibility, automated reporting, and full audit traceability while eliminating manual entry errors and preventing misuse of camp facilities.
Registered Employees
0
Registered Contractors
0
+
Access Points
0
Sites
Gates Managed
0
Lanes
|
Client |
Oil & Gas Company (Labour Camp) |
|
Location |
Saudi Arabia (KSA) |
|
Project Scope |
Integrated gate access control & dining management |
|
Technology |
ANPR (Hikvision), UHF RFID (Control ID), QR Code (ZKTeco QR-600) |
|
Software Platform |
Parkomax Cloud – centralized dashboard |
|
Access Points |
Gate 1, Camp Gate, Dining Area |
|
Users Managed |
Employees (1200), Contractors(500+), Visitors, Miscellaneous |
|
Connectivity |
Cloud-based; sites interconnected via internet |
|
Hardware |
6 UHF readers, 6 ANPR cameras, 2 QR readers, 5 barriers, loop detectors |
The Challenges Faced by The Labour Camp Before Parkomax Implementation
The labour Camp presented several complex, interrelated access control challenges that ruled out off-the-shelf solutions:
- Disconnected Multi-site Infrastructure
Three access points – Gate 1 at the entry and exit, Gate 2 inside the facility, and a dining area– operate in separate physical zones with no direct network link between them. Providing a unified view of access events across all three sites required a purpose-built cloud architecture.
- Multiple User Categories with Different Access Rules
The camp accommodates employees, contractors, visitors, and miscellaneous personnel (government officials, maintenance crews, police). Each group requires distinct verification methods, registration workflows, and access privileges – including time-bounded validity and real-time status control.
- High-volume Entry with Accuracy Demands
With over 1,700 registered tenants and regular visitor traffic, the system had to reliably distinguish between vehicles, prevent misreads from ANPR, and ensure UHF tag data was accurately captured and logged – even for multi-vehicle tenants.
- Dining Facility Misuse Prevention
The dining area needed to prevent unauthorized access and restrict individuals to one entry per meal period (Breakfast, Lunch, Dinner), while giving administrators real-time count dashboards and automated daily reports.
- Unregistered Walk-in Visitors
Unannounced visitors required a fast, auditable spot-registration process with real-time admin approval – without disrupting gate flow or compromising security.
What Solution the Parkomax Implemented at The Site?
Parkomax deployed its cloud-hosted access management platform with customized modules for gate control, visitor management, and dining access, creating a single source of truth across all three sites.

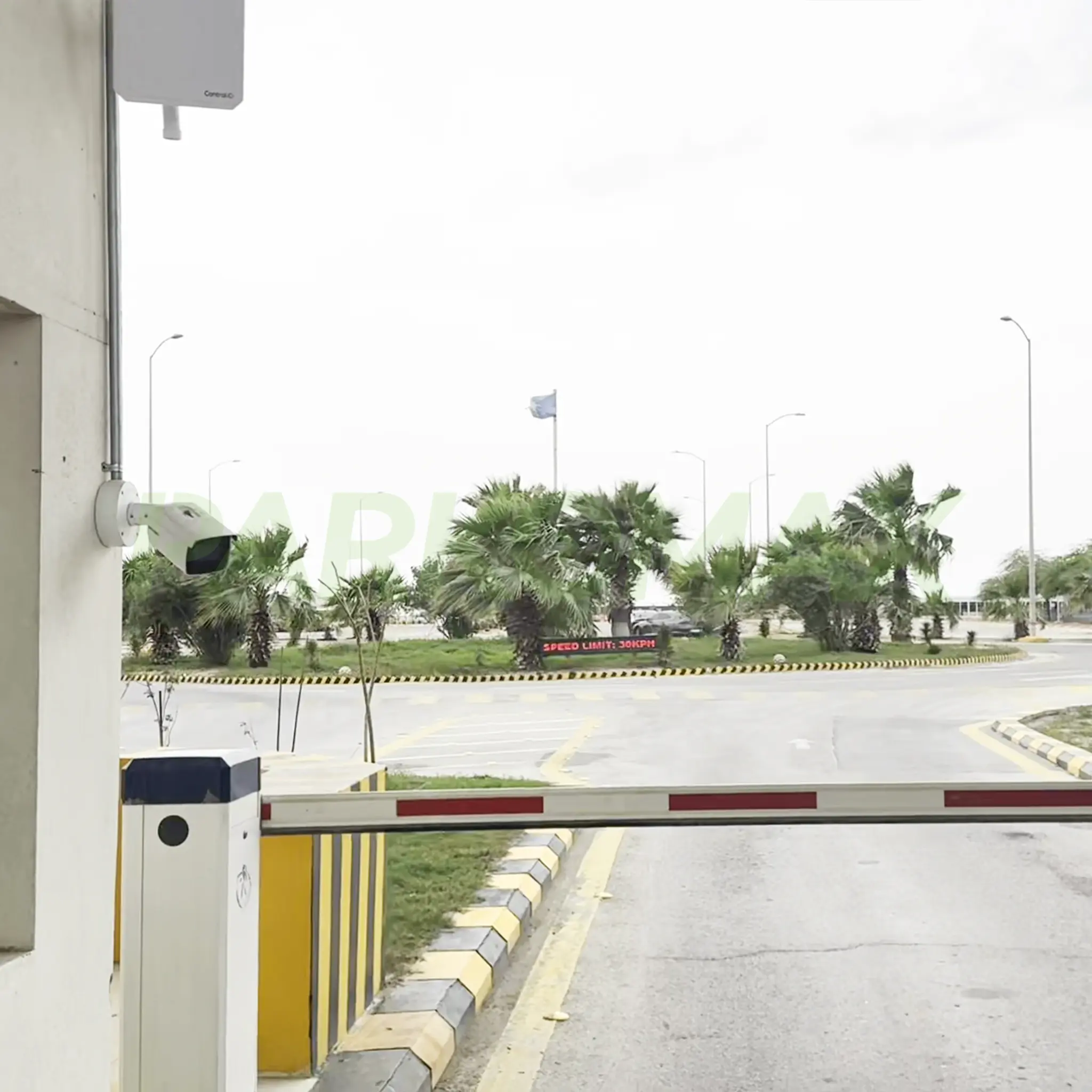

- Gate 1: Primary Entry & Exit
As the main entry point for all personnel, Gate 1 required the most sophisticated setup. Parkomax configured two entry and two exit lanes (10-meter width) equipped with:
- 4× Hikvision ANPR cameras capturing license plates in real time
- 4× Control ID UHF readers detecting embedded vehicle tags
- Loop detectors to trigger ANPR operations automatically
- A secondary display screen in the security room showing real-time access status
The secondary dashboard presents a split-screen view: the top half shows a large green YES or red NO access indicator, while the bottom half displays the visitor’s name, unique ID code, captured plate image, and recognized plate number giving security staff instant, unambiguous confirmation.
- Gate 2: Internal Access Control
Camp Gate serves as a secondary checkpoint for personnel proceeding to residential areas. Its narrower 5-meter lanes are managed with:
- 2× Hikvision ANPR cameras (entry and exit)
- 2× Control ID UHF readers
- 1 entry barrier and 1 exit barrier
- Wall-mounted hardware for compact deployment in the security room
A dedicated secondary display mirrors the Jewel Gate dashboard experience, ensuring consistent real-time visibility for Camp Gate operators.
- UHF Tag-based Tenant Registration
All employees and contractors are registered as tenants with embedded UHF vehicle tags. The enrollment process captures:
- Full name, vehicle number, brand, type, and colour
- Istimara registration number and Iqama / National ID
- Mobile number and optional personal email
- Access location scope (Gate 1 / Camp Gate / Dining)
- Room number (mandatory for Camp Gate access)
- Unique coded ID – Blue sticker (MPD-A-XXXX) for labour camp employees, Yellow sticker (MPD-C-XXXX) for contractors
The platform supports multiple vehicle registrations per tenant. Primary vehicles carry UHF tags; secondary vehicles are managed via ANPR-only access with operator verification ensuring flexibility without compromising audit trails.
- Visitor Management
Parkomax’s visitor management module handles three distinct visitor scenarios:
- Pre-registered Visitors
Visitors approved in advance by an admin are registered with full details including name, vehicle info, ID, company name, purpose of visit, and time-bounded access validity. Upon arrival, the operator confirms identity and manually opens the barrier. An automated email notification is sent to the admin confirming arrival.
- Walk-in Visitors
Unannounced visitors are guided to the office at Gate 1 for spot registration. Operators capture name, vehicle number, and ID details, which trigger a real-time email notification to the admin for approval. The admin can instantly set the visitor status to Authorized or Denied, displayed prominently on both the entry portal and the secondary screen.
- Miscellaneous / Government Access
Government officials, police, and other authorized personnel can be registered on-the-spot or via pre-registration. Only minimal details are required (name, vehicle number, remarks, access duration), and all such entries are fully logged for audit purposes.

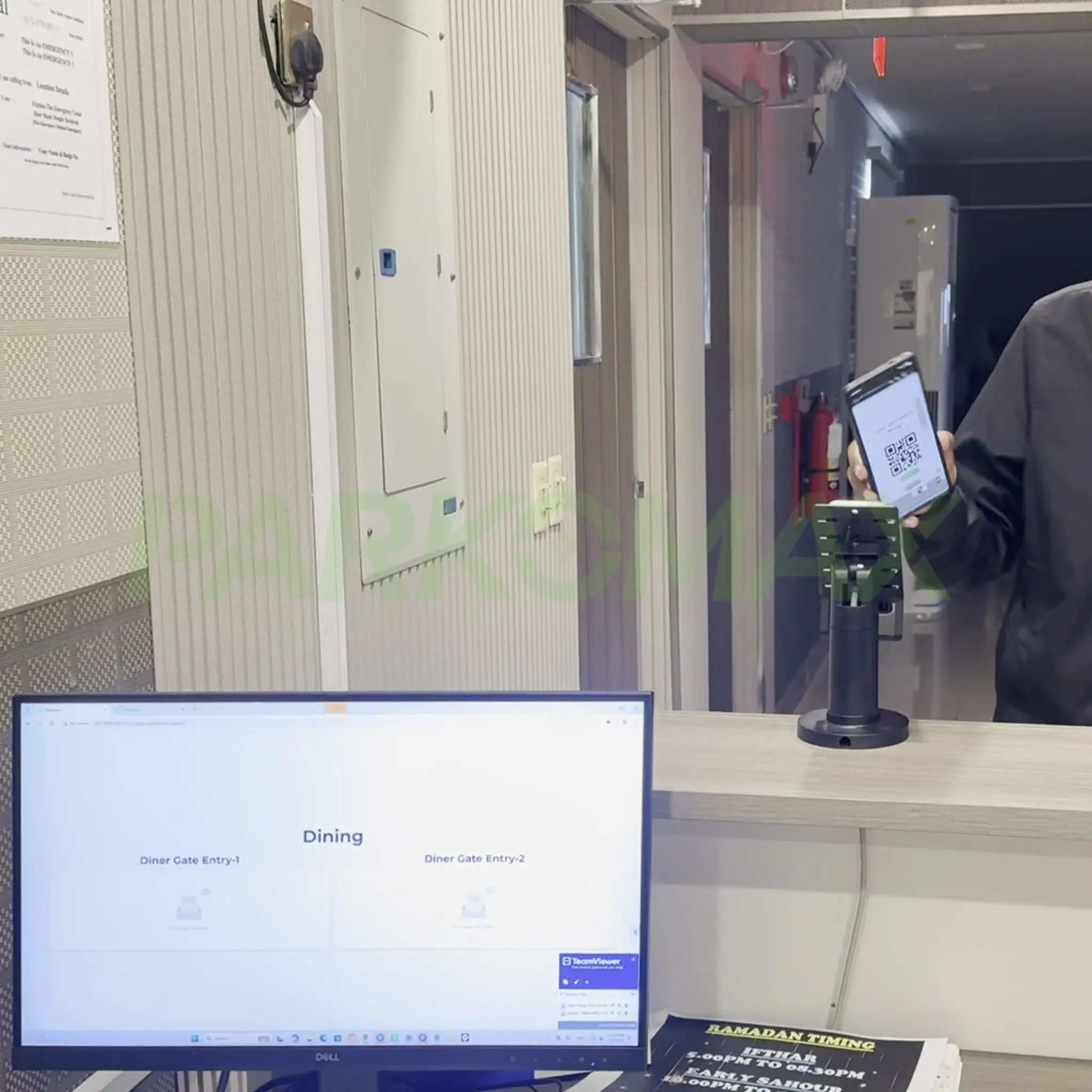

Dining Area Access Management
The dining facility uses QR code-based access via ZKTeco QR-600 readers integrated with a Hikvision DS-K2622X two-door controller. Two readers are deployed at the entry to handle peak-time volumes and eliminate queuing.
Key features of the dining module include:
- Admin generates unique QR codes during enrollment, distributed via email or WhatsApp
- Admins can regenerate or issue new QR codes at any time
- Real-time activate/deactivate control per user
- One entry per meal slot enforced by the system (Breakfast: 4:30–8:00 AM, Lunch: 10:30 AM–1:30 PM, Dinner: 4:00–9:30 PM)
- Live dashboard counts for each meal period
- QR codes available for all user categories: employees, contractors, visitors, and miscellaneous
Dining QR codes are only generated when both Camp Gate and Dining access are selected in the user profile – preventing unauthorized dining access by individuals without proper camp clearance.
Reporting And Automated Intelligence
Parkomax’s reporting engine provides Aramco with complete operational visibility without manual effort.
Automated Daily Reports (12:00 AM Email Delivery)
A consolidated report is automatically emailed to designated administrators every midnight, covering:
- Gate Access Summary: Total vehicles, broken down by Employees, Contractors, Visitors, and Miscellaneous
- Dining Access Summary: Entry counts per meal period (Breakfast, Lunch, Dinner)
- Up to 10 authorized approvers can be configured as report recipients
Live Admin Dashboard
The centralized Parkomax dashboard provides:
- Real-time vehicle entry and exit logs across all gates
- Live visitor approval/denial controls
- Dining access counters updated in real time per meal window
- Full audit trail of all access events, edits, and admin actions
Key Outcomes And Business Value
- Unified Multi-site Control
Three disconnected locations managed from a single cloud dashboard, eliminating siloed operations and giving management full visibility.
- Reduced Manual Errors
UHF tag + ANPR dual-verification with operator edit capability ensures accurate vehicle identification and clean data logs.
- Real-time Admin Control
Instant visitor approval, access deactivation, and status updates – all without needing physical presence at the gate.
- Dining Abuse Prevention
One-entry-per-meal-slot enforcement with real-time counts prevents unauthorized access and over-utilization of dining resources.
- Full Audit Compliance
Every access event, visitor registration, and admin action is logged and exportable – meeting the labour camp’s strict security and compliance requirements.
- Zero-touch Reporting
Automated midnight email reports deliver actionable summaries to up to 10 approvers – no manual compilation required.
Why Parkomax?
The labour camp deployment demonstrates Parkomax’s ability to address enterprise-scale, mission-critical access control requirements where no standard product fits. Key differentiators that made this project possible:
- Cloud-native architecture enabling multi-site management without on-premise server infrastructure at each location
- Flexible integration layer supporting ANPR (Hikvision), UHF RFID (Control ID), and QR code readers (ZKTeco) within a single platform
- Configurable user categories and access rules accommodating the full spectrum of Aramco personnel types
- Purpose-built operator tools reducing gate friction while maintaining security integrity
- Automated reporting and real-time notifications reducing administrative burden across security and management teams
- Proven deployment expertise in demanding industrial and energy sector environments
Turning Complexity into Confidence
Parkomax transformed a complex, multi-location access control environment into a single, intelligent security ecosystem. By integrating ANPR, UHF RFID, and QR code technologies on one cloud-based platform, the solution delivered real-time visibility, streamlined operations, and enhanced security across the entire labour camp. This deployment demonstrates Parkomax’s ability to build scalable, enterprise-grade access management solutions tailored to the unique operational demands of large residential, industrial, and workforce facilities.
